低音喇叭系列 TLW157501
    發布時間: 2019-11-07 14:53
低音產品名稱: TLW157501
15" FERRITE WOOFER
1000W連續程序功率處理
97 dB靈敏度

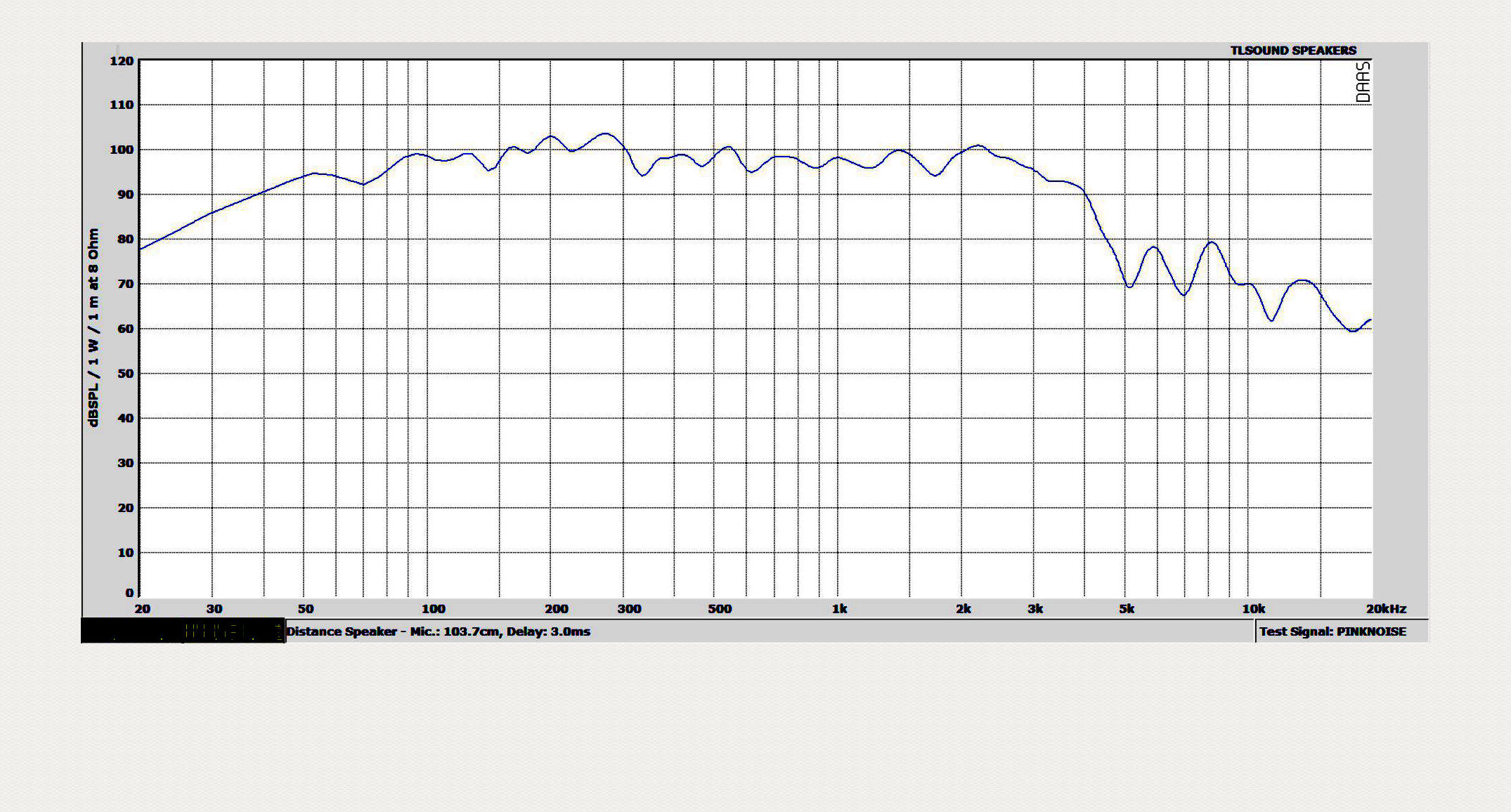

40 Hz – 2.5 kHz頻率範圍
TLW157501在提供出色的頻率響應線性度，且失真極低, 可提供非常高的功率處理能力，令人難以置信的功率處理。
低音產品名稱: TLW157501
SPL: 97.6 dB Specifications: TLW157501
Fms: 47.5  Hz Frame Diameter: 390 mm(15 in)
Re: 5.6 Ω Nominal impedance: 8Ω
Qms: 17.3 VOICE COIL DC resistance: 5.6Ω
Qes: 0.37 Nominal power handling: 850W
Qts: 0.36 Continuous power handling: 1000W
Rms: 1.5 kg/s Sensitivity(SPL1W/1m): 97+/-2dB
Mms: 86.4 gr Voice coil diameter: 75mm (3 in)
Bl: 19.8 N/A Winding material: CCAW
Nref: 3.65 % Diaphragm material: PAPER
VAS: 129.9 L Magnet material: FERRITE
Cms: 0.13 mm/N
Le 0.78 mH
Sd: 845 cm²

TLSOUND SPEAKERS
